Big Little Server Models

Lenovo ThinkSmart Edition Tiny M80q 2020 Intel i5-10500T

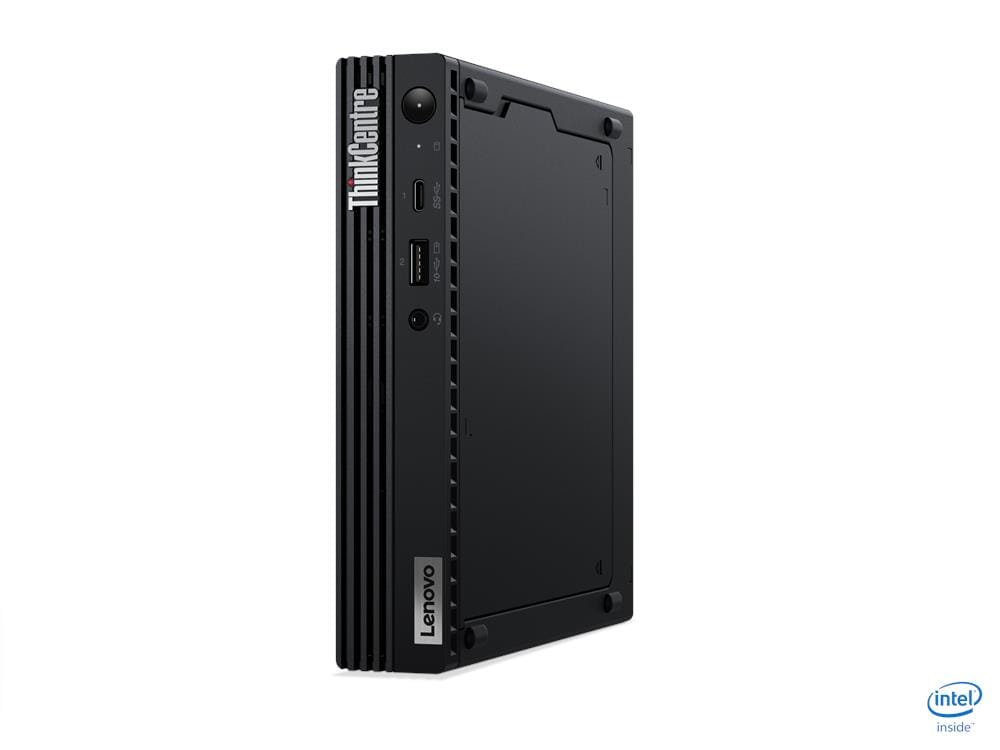

ThinkSmart Edition Tiny M80q
4,716
129th of 276
54
30
$280
17 of 55 max

CPU

Cores
6
Threads
12
Geekbench single
1,290
Geekbench multi
4,716
Base freq
2.3 GHz
Max freq
3.8 GHz
Architecture
Comet Lake-S
Year
2020
Process
14 nm
Cache
12 MB
TDP
35 W
Graphics
Intel® UHD Graphics 630

RAM

Platform max
16GB: 2x 8GB DDR4-2666
Factory options
  • 16GB: 2x 8GB DDR4-2666
  • 8GB: 1x 8GB DDR4-2666

Storage

Layout
1x M.2 NVMe
Factory options
  • 256GB: 1x 256GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x HDMI
  • 1x DisplayPort
  • 2x USB-A 3.2 Gen 1
  • 2x USB-A 3.2 Gen 2
  • 1x GbE RJ-45
Front
  • 1x USB-A 3.2 Gen 2 (Always On; fast charge)
  • 1x USB-C 3.2 Gen 1
  • 1x Headphone/microphone combo (3.5mm)

Network

Integrated NIC
  • I219-LM, 1x GbE RJ-45
Factory network adapters
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro

Factory configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
11QA 2x 8GB DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • 1x GbE RJ-45
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro
11Q9 1x 8GB DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe 1x GbE RJ-45
11QA 1x 8GB DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe 1x GbE RJ-45
11QA 1x 8GB DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • 1x GbE RJ-45
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro
11Q9 1x 8GB DDR4-2666 1x 256GB SSD M.2 2280 PCIe x4 NVMe 1x GbE RJ-45
11QA 1x 8GB DDR4-2666 1x 256GB SSD M.2 2280 PCIe x4 NVMe
  • 1x GbE RJ-45
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro
11QA 1x 8GB DDR4-2666 1x 256GB SSD M.2 2280 PCIe x4 NVMe 1x GbE RJ-45
