Big Little Server Models

Lenovo ThinkCentre neo 50q Gen 4 Thin Client 2023 Intel Celeron 7305

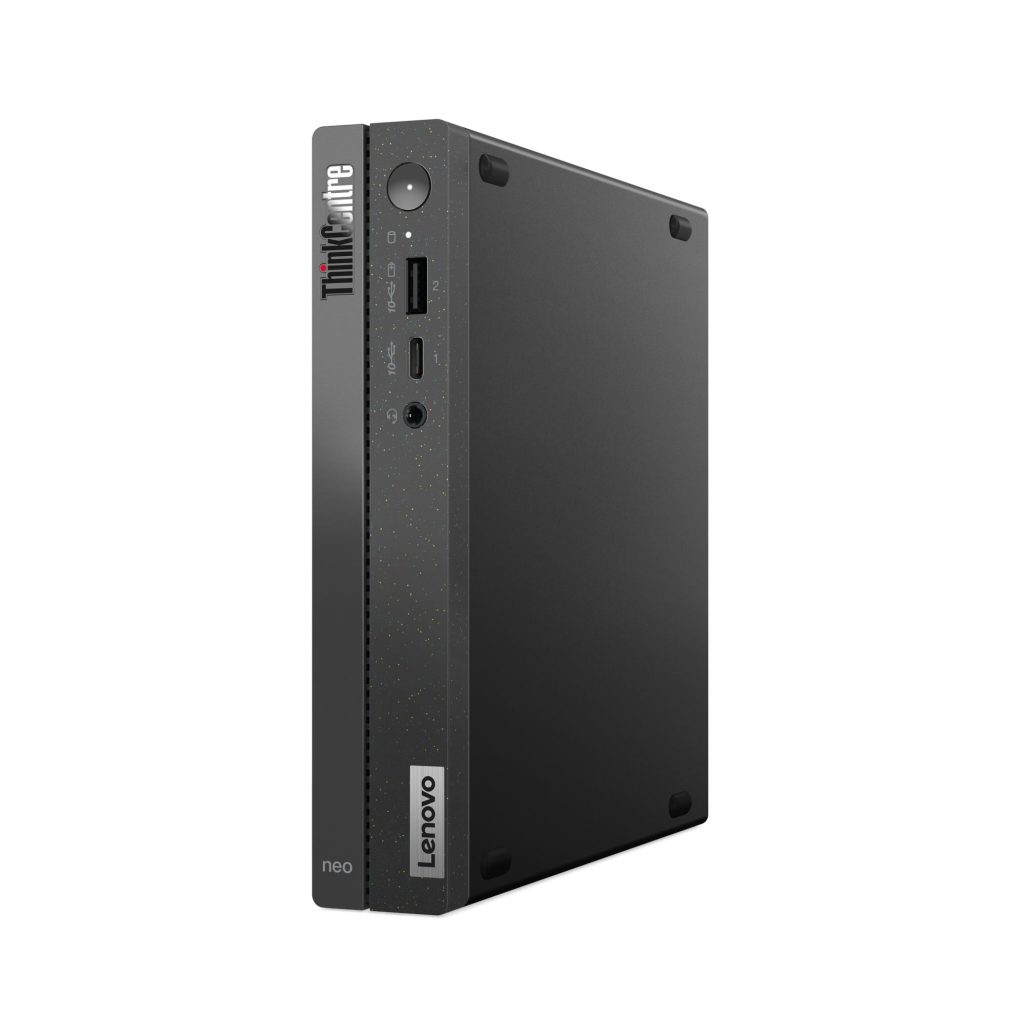

ThinkCentre neo 50q Gen 4 Thin Client
16
1,376
174 of 206
CPU
-
No price
Unranked
Value

CPU

Cores
5
Threads
5
Geekbench single
498
Geekbench multi
1,376
Base freq
1.1 GHz
Max freq
0.9 GHz
Architecture
Alder Lake-U
Year
2022
Process
Intel 7
Cache
8 MB
TDP
15 W
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors

RAM

Platform max
32GB: 2x 16GB DDR4-3200 SO-DIMM
Factory
16GB: 1x 16GB DDR4-3200

Storage

Layout
1x M.2 NVMe
Factory
256GB: 1x 256GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4
  • 2x USB-A 2.0
  • 2x USB-A 3.2 Gen 2
  • 1x Ethernet RJ-45
Front
  • 1x USB-A 3.2 Gen 2 (Always On; charging)
  • 1x USB-C 3.2 Gen 2 (charging; data transfer)
  • 1x Headphone/microphone combo (3.5mm)

Network

Integrated NIC
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
Factory network adapters
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.1
  • Realtek RTL8852BE: M.2 PCIe Wi-Fi 6 + BT 5.1

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
12M1 1x 16GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M2 1x 16GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M2 1x 16GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.1
12LH 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12LJ 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12LJ 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12LL 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.1
12LL 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12M1 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M1 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12M2 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M2 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.1
12M2 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12M5 1x 8GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12LL 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.1
12LL 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12M1 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M1 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe RTL8111K: 1x 1GbE RJ-45 Ethernet
12M2 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
12M2 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8852BE M.2 PCIe Wi-Fi 6 + BT 5.1
12M5 1x 4GB SODIMM DDR4-3200 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • RTL8111K: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
