CPU
- Cores
- 2
- Threads
- 4
- Geekbench single
- 898
- Geekbench multi
- 1,786
- Base freq
- 2.9 GHz
- Max freq
- 2.9 GHz
- Architecture
- Haswell
- Year
- 2013
- Process
- 22 nm
- Cache
- 256 KB
- TDP
- 35 W
- Graphics
- Intel® HD Graphics 4400

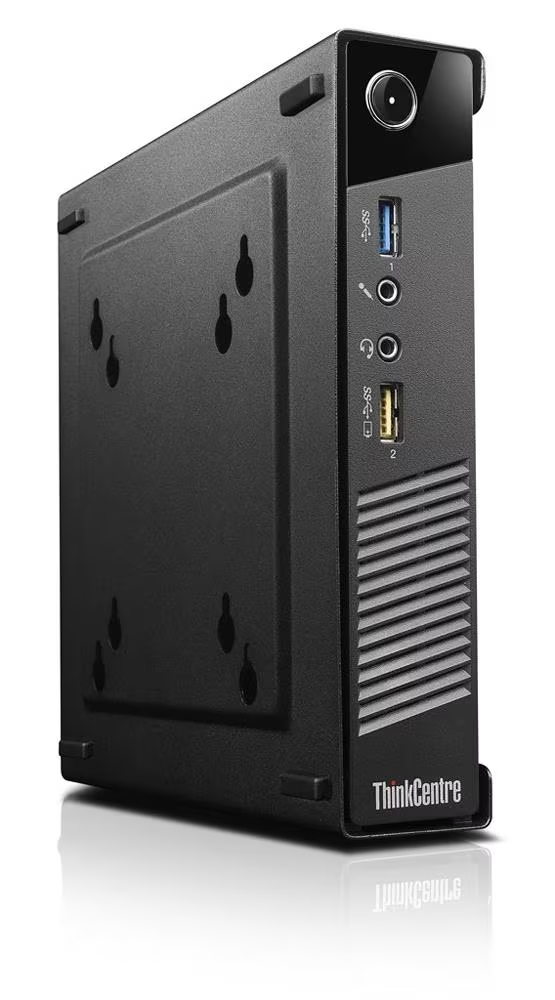

Lenovo ThinkCentre M93 M93p Tiny 2013 i3-4130T
1,786
209th of 276
25
1-100, higher is better. Percentage of mini-PC CPUs in the database that this CPU outperforms.92
1-100, higher is better. Geekbench multi-core points per dollar as a percentage of the best value score in the database.$35
51 of 55 max
RAM
- Platform max
- 16GB: 2x 8GB DDR3-1600
- Factory options
-
- 4GB: 1x 4GB DDR3-1600
Storage
- Layout
- 1x SATA 2.5"
- Factory options
-
- 500GB: 1x 500GB SSHD 5400rpm
I/O Ports
- Rear
- 3x USB-A 3.0
- 1x VGA DB-15
- 1x DisplayPort
- 1x GbE RJ-45
- Front
- 2x USB-A 3.0 (Always On)
- 1x Microphone (3.5mm)
- 1x Headphone/microphone combo (3.5mm)
Network
- Integrated NIC
-
- I217-LM, 1x GbE RJ-45
- Compatible network adapters
-
- Intel 2230: Half Mini PCIe Wi-Fi 4 + BT
- Intel 6235: Half Mini PCIe Wi-Fi 4 + BT + vPro
- Intel 7260: Half Mini PCIe Wi-Fi 4 + BT 4.0
- Intel 7260: Half Mini PCIe Wi-Fi 5 + BT + vPro
- Factory network adapters
-
- Intel 105: Half Mini PCIe Wi-Fi 4
Factory configurations
Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.
| Code | RAM | Storage | Network |
|---|---|---|---|
| 10A5 | 1x 4GB | 1x 500GB 5400 rpm SSHD | Intel 105 Half Mini PCIe Wi-Fi 4 |
