CPU
- Cores
- 4
- Threads
- 4
- Geekbench single
- 939
- Geekbench multi
- 2,554
- Base freq
- 2.2 GHz
- Max freq
- 2.8 GHz
- Architecture
- Skylake-S
- Year
- 2015
- Process
- 14 nm
- Cache
- 6 MB
- TDP
- 35 W
- Graphics
- Intel® HD Graphics 530

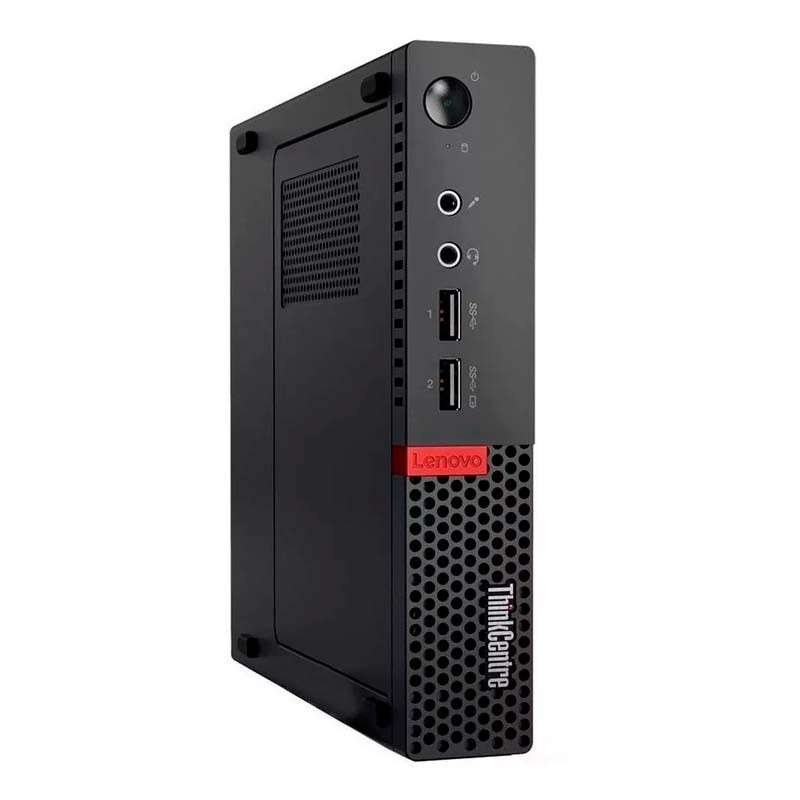

Lenovo ThinkCentre M910 Tiny 2018 Intel i5-6400T
26
2,554
153 of 206
CPU
-
No price
Unranked
Value
RAM
- Platform max
- 32GB: 2x 16GB DDR4-2400 SO-DIMM
- Factory
- 8GB: 1x 8GB DDR4-2400
Storage
- Layout
- 1x M.2 NVMe + 1x SATA 2.5"
- Factory
- 500GB: 1x 500GB 2.5" HDD 7200rpm
I/O Ports
- Rear
- 4x USB-A 3.1 Gen 1
- 2x DisplayPort
- 1x Ethernet RJ-45
- Front
- 2x USB-A 3.1 Gen 1 (Always On; fast charge)
- 1x Microphone (3.5mm)
- 1x Headphone/microphone combo (3.5mm)
Network
- Integrated NIC
-
- I219-LM: 1x 1GbE RJ-45 Ethernet
- Compatible network adapters
-
- Intel 3165: M.2 PCIe Wi-Fi 5 + BT 4.2
- Qualcomm QCA6174A: M.2 PCIe Wi-Fi 5 + BT 4.2
- Qualcomm QCA9377A: M.2 PCIe Wi-Fi 5 + BT 4.2
- Factory network adapters
-
- Intel 8265: M.2 PCIe Wi-Fi 5 + BT 4.1 + vPro
Known configurations
Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.
| Code | RAM | Storage | Network |
|---|---|---|---|
| 10MV | 1x 8GB | 1x 500GB 7200rpm 2.5" |
|
| 10MV | 1x 8GB | 1x 256GB SSD M.2 PCIe NVMe |
|
