Big Little Server Models

Lenovo ThinkCentre M90q Gen 5 2024 Intel i5-13500

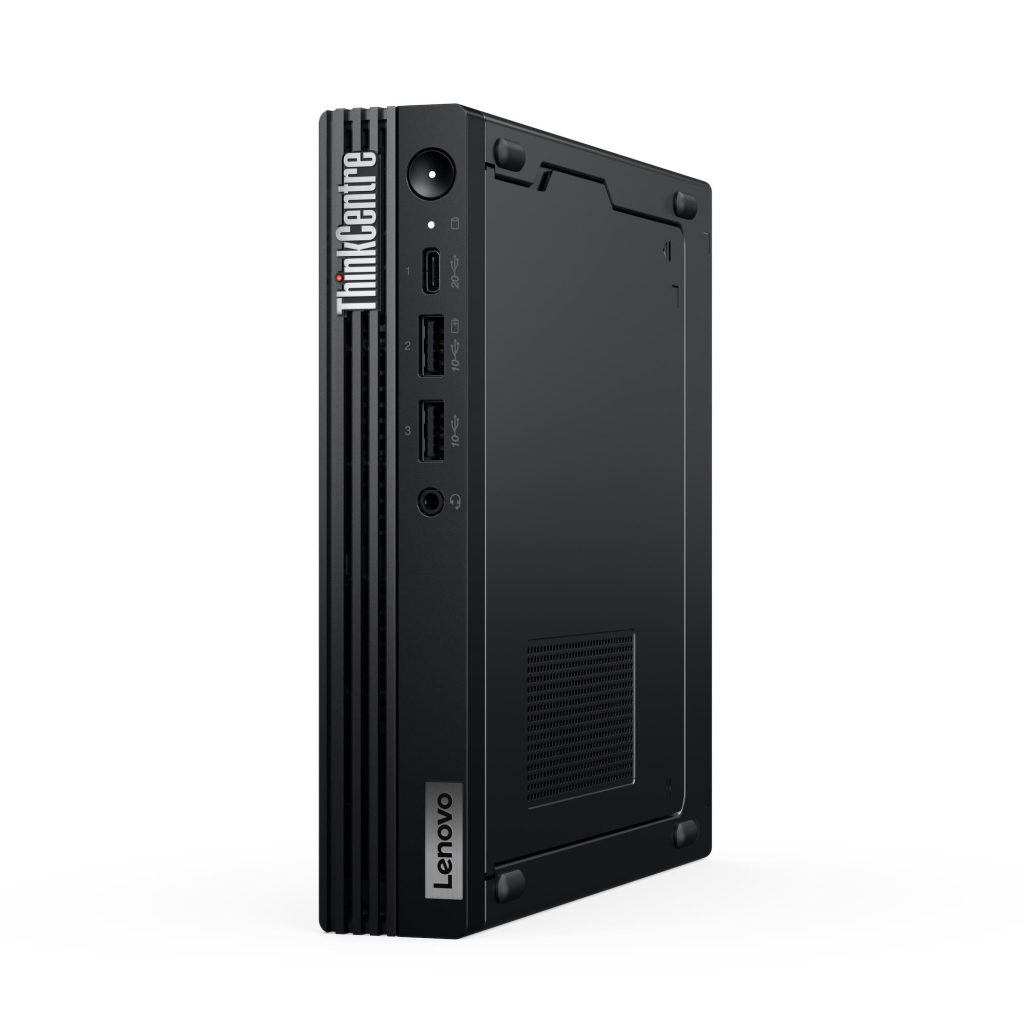

ThinkCentre M90q Gen 5
90
12,103
21 of 206
CPU
-
No price
Unranked
Value

CPU

Cores
14
Threads
20
Geekbench single
2,418
Geekbench multi
12,103
Base freq
1.8 GHz
Max freq
4.8 GHz
Architecture
Raptor Lake-S
Year
2023
Process
Intel 7
Cache
24 MB
TDP
65 W
Graphics
Intel® UHD Graphics 770

RAM

Platform max
64GB: 2x 32GB DDR5-5600 SO-DIMM
Factory
16GB: 1x 16GB DDR5-4800

Storage

Layout
1x M.2 NVMe
Factory
1000GB: 1x 1000GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x USB-A 3.2 Gen 1
  • 1x USB-A 3.2 Gen 1 (Smart Power On)
  • 2x USB-A 3.2 Gen 2
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4a (HBR2; DSC)
  • 1x Ethernet RJ-45
Front
  • 1x USB-C 3.2 Gen 2x2 (data transfer; data only)
  • 1x USB-A 3.2 Gen 2 (Always On; charging)
  • 1x USB-A 3.2 Gen 2
  • 1x Headphone/microphone combo (3.5mm)

Network

Integrated NIC
  • 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • RTL8125BGS: PCIe 1x 2.5GbE RJ-45 Ethernet
  • PCIe 4x 1GbE RJ-45 Ethernet
  • Intel AX211: M.2 PCIe Wi-Fi 6E + BT 5.3 + vPro
  • Intel BE200: M.2 PCIe Wi-Fi 7 + BT 5.3 + vPro
Factory network adapters
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.2

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
12TJ 1x 16GB SODIMM DDR5-4800 1x 1000GB SSD M.2 2280 PCIe 4.0x4 NVMe 1x 1GbE RJ-45 Ethernet
12TJ 1x 16GB SODIMM DDR5-4800 1x 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
  • 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.2
