Big Little Server Models

Lenovo ThinkCentre M90q Gen 2 2021 Intel Celeron G5925

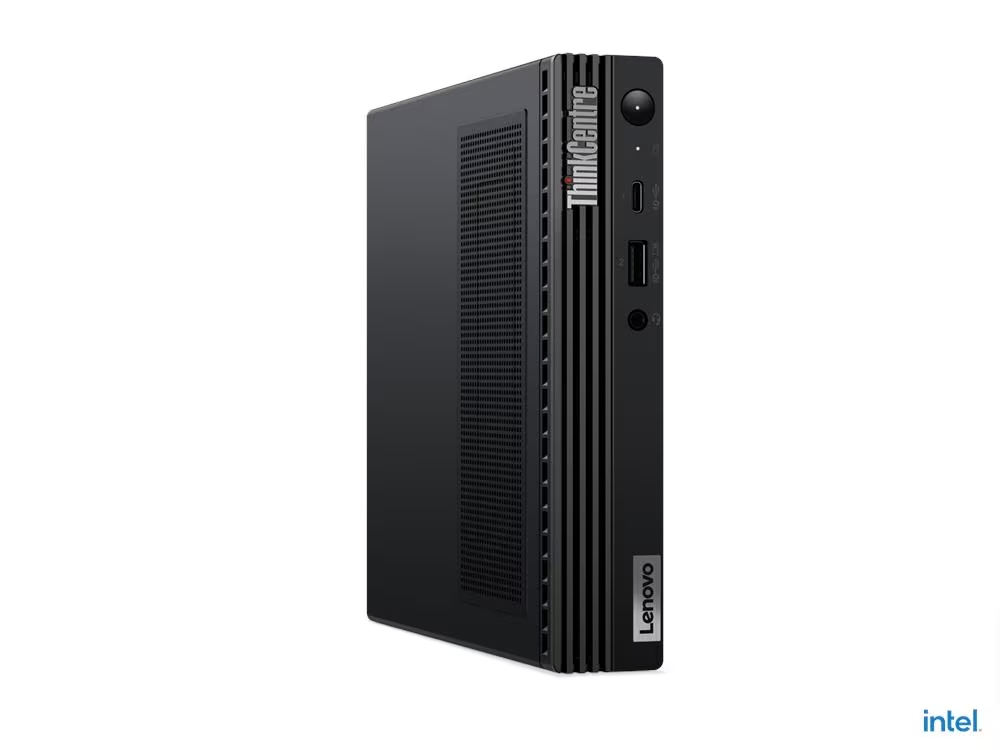

ThinkCentre M90q Gen 2
1,285
234th of 276
16
21
$110
12 of 55 max

CPU

Cores
2
Threads
2
Geekbench single
755
Geekbench multi
1,285
Base freq
3.6 GHz
Max freq
3.6 GHz
Architecture
Comet Lake-S
Year
2020
Process
14 nm
Cache
4 MB
TDP
58 W
Graphics
Intel® UHD Graphics 610

RAM

Platform max
64GB: 2x 32GB DDR4-2666
Factory options
  • 4GB: 1x 4GB DDR4-2666

Storage

Layout
2x M.2 NVMe + 1x SATA 2.5"
Factory options
  • 256GB: 1x 256GB M.2 NVMe SSD
  • 128GB: 1x 128GB M.2 NVMe SSD

I/O Ports

Rear
  • 1x HDMI
  • 1x DisplayPort
  • 2x USB-A 3.2 Gen 1
  • 2x USB-A 3.2 Gen 2
  • 1x GbE RJ-45
Front
  • 1x USB-A 3.2 Gen 2 (Always On; fast charge)
  • 1x USB-C 3.2 Gen 2
  • 1x Headphone/microphone combo (3.5mm)

Network

Integrated NIC
  • I219-LM, 1x GbE RJ-45
Compatible network adapters
  • I350-T4, PCIe, 4x GbE RJ-45
  • Intel 9560: M.2 PCIe Wi-Fi 5 + BT 5.1
  • Realtek RTL8822CE: M.2 PCIe Wi-Fi 5 + BT 5.0
Factory network adapters
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro

Factory configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
11MQ 1x 4GB DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0 NVMe
  • 1x GbE RJ-45
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro
11MQ 1x 4GB DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • 1x GbE RJ-45
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1 + vPro
