CPU
- Cores
- 4
- Threads
- 4
- Geekbench single
- 917
- Geekbench multi
- 2,558
- Base freq
- 2 GHz
- Max freq
- 3 GHz
- Architecture
- Haswell
- Year
- 2014
- Process
- 22 nm
- Cache
- 256 KB
- TDP
- 35 W
- Graphics
- Intel® HD Graphics 4600

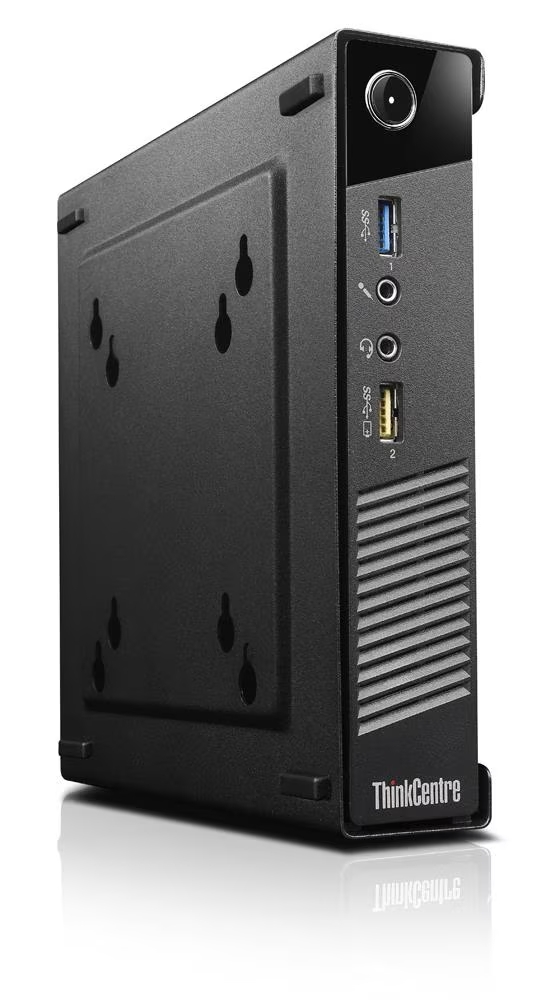

Lenovo ThinkCentre M83 Tiny 2014 i5-4590T
2,558
186th of 276
33
1-100, higher is better. Percentage of mini-PC CPUs in the database that this CPU outperforms.77
1-100, higher is better. Geekbench multi-core points per dollar as a percentage of the best value score in the database.$60
43 of 55 max
RAM
- Platform max
- 16GB: 2x 8GB DDR3L-1600
- Factory options
-
- 8GB: 1x 8GB DDR3L-1600
- 6GB DDR3L-1600
- 4GB: 1x 4GB DDR3L-1600
Storage
- Layout
- 1x SATA 2.5"
- Factory options
-
- 500GB: 1x 500GB HDD 5400rpm
- 500GB: 1x 500GB SSHD
- 256GB: 1x 256GB SSD
- 192GB: 1x 192GB SSD
- 120GB: 1x 120GB SSD
I/O Ports
- Rear
- 2x USB-A 3.0
- 1x USB-A 2.0
- 1x VGA
- 1x DisplayPort
- 1x GbE RJ-45
- Front
- 2x USB-A 3.0 (Always On)
- 1x Microphone (3.5mm)
- 1x Headphone/microphone combo (3.5mm)
Network
- Integrated NIC
-
- I217-LM, 1x GbE RJ-45
- Compatible network adapters
-
- Broadcom BCM4352: Half Mini PCIe Wi-Fi 5 + BT 4.0
- Realtek RTL8192EE: Half Mini PCIe Wi-Fi 4 + BT 4.0
- Factory network adapters
-
- Intel 7260: Half Mini PCIe Wi-Fi 4 + BT
- Intel 7260: Half Mini PCIe Wi-Fi 5 + BT
- Realtek RTL8723BE: Half Mini PCIe Wi-Fi 4 + BT 4.0
Factory configurations
Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.
| Code | RAM | Storage | Network |
|---|---|---|---|
| 10E9 | 1x 8GB | 1x 500GB 7200 | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E8 | 1x 8GB | 1x 256GB SSD | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E9 |
|
1x 500GB 7200 | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E8 | 1x 4GB | 1x 500GB 5400 | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E8 | 1x 4GB | 1x 500GB 5400 | Realtek RTL8723BE Half Mini PCIe Wi-Fi 4 + BT 4.0 |
| 10E8 | 1x 4GB | 1x 500GB 7200 | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E8 | 1x 4GB | 1x 500GB 7200 | Realtek RTL8723BE Half Mini PCIe Wi-Fi 4 + BT 4.0 |
| 10E9 | 1x 4GB | 1x 500GB 7200 | Intel 7260 Half Mini PCIe Wi-Fi 5 + BT |
| 10E9 | 1x 4GB | 1x 500GB 7200 | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E8 | 1x 4GB | 1x 500GB SSHD | Intel 7260 Half Mini PCIe Wi-Fi 5 + BT |
| 10E9 | 1x 4GB | 1x 500GB SSHD | Intel 7260 Half Mini PCIe Wi-Fi 5 + BT |
| 10E9 | 1x 4GB | 1x 256GB SSD | Intel 7260 Half Mini PCIe Wi-Fi 5 + BT |
| 10E9 | 1x 4GB | 1x 256GB SSD | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
| 10E9 | 1x 4GB | 1x 192GB SSD | Intel 7260 Half Mini PCIe Wi-Fi 5 + BT |
| 10E9 | 1x 4GB | 1x 120GB SSD | Intel 7260 Half Mini PCIe Wi-Fi 4 + BT |
