Big Little Server Models

Lenovo ThinkCentre M70q 2020 Intel i3-10100T

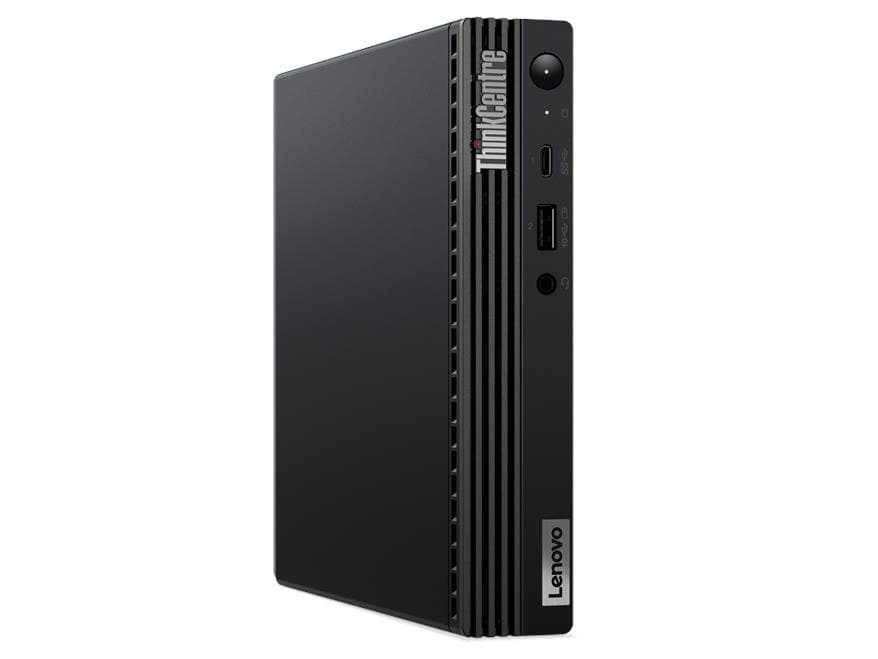

ThinkCentre M70q
41
3,671
122 of 206
CPU
-
No price
Unranked
Value

CPU

Cores
4
Threads
8
Geekbench single
1,260
Geekbench multi
3,671
Base freq
3 GHz
Max freq
3.8 GHz
Architecture
Comet Lake-S
Year
2020
Process
14 nm
Cache
6 MB
TDP
35 W
Graphics
Intel® UHD Graphics 630

RAM

Platform max
64GB: 2x 32GB DDR4-2666 SO-DIMM
Factory
16GB: 1x 16GB DDR4-2666

Storage

Layout
1x M.2 NVMe + 1x SATA 2.5"
Factory
1256GB: 1x 256GB M.2 NVMe SSD + 1x 1000GB 2.5" HDD 7200rpm

I/O Ports

Rear
  • 1x HDMI
  • 1x DisplayPort
  • 3x USB-A 3.2 Gen 1
  • 1x USB-A 3.2 Gen 2
  • 1x Ethernet RJ-45
Front
  • 1x USB-A 3.2 Gen 2 (Always On; fast charge)
  • 1x USB-C 3.2 Gen 1
  • 1x Headphone/microphone combo (3.5mm)

Network

Integrated NIC
  • I219-V: 1x 1GbE RJ-45 Ethernet
Compatible network adapters
  • Intel 9462: M.2 PCIe Wi-Fi 5 + BT 5.0
Factory network adapters
  • Intel 9560: M.2 PCIe Wi-Fi 5 + BT 5.0
  • Intel AX201: M.2 PCIe Wi-Fi 6 + BT 5.1
  • Realtek RTL8822CE: M.2 PCIe Wi-Fi 5 + BT 5.0

Known configurations

Actual Lenovo model codes found with this CPU, grouped by the RAM, storage, and network options they shipped with.

Code RAM Storage Network
11DT 1x 16GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 16GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666
  • 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5" I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5" I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 512GB SSD M.2 2242 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DT 1x 8GB SO-DIMM DDR4-2666 1x 512GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 512GB SSD M.2 2242 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DT 1x 8GB SO-DIMM DDR4-2666 1x 512GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 512GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 500GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 500GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 500GB HDD 7200rpm 2.5" I219-V: 1x 1GbE RJ-45 Ethernet
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DU 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DU 1x 8GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DU 2x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 8GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 8GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Realtek RTL8822CE M.2 PCIe Wi-Fi 5 + BT 5.0
11DU 1x 8GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 4GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5" I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 4GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DV 1x 4GB SO-DIMM DDR4-2666 1x 1000GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 500GB HDD 7200rpm 2.5" I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 4GB SO-DIMM DDR4-2666 1x 500GB HDD 7200rpm 2.5"
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DT 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DU 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2242 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DU 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
11DU 1x 4GB SO-DIMM DDR4-2666 1x 256GB SSD M.2 2280 PCIe 3.0x4 NVMe I219-V: 1x 1GbE RJ-45 Ethernet
11DT 1x 4GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel 9560 M.2 PCIe Wi-Fi 5 + BT 5.0
11DT 1x 4GB SO-DIMM DDR4-2666 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • I219-V: 1x 1GbE RJ-45 Ethernet
  • Intel AX201 M.2 PCIe Wi-Fi 6 + BT 5.1
